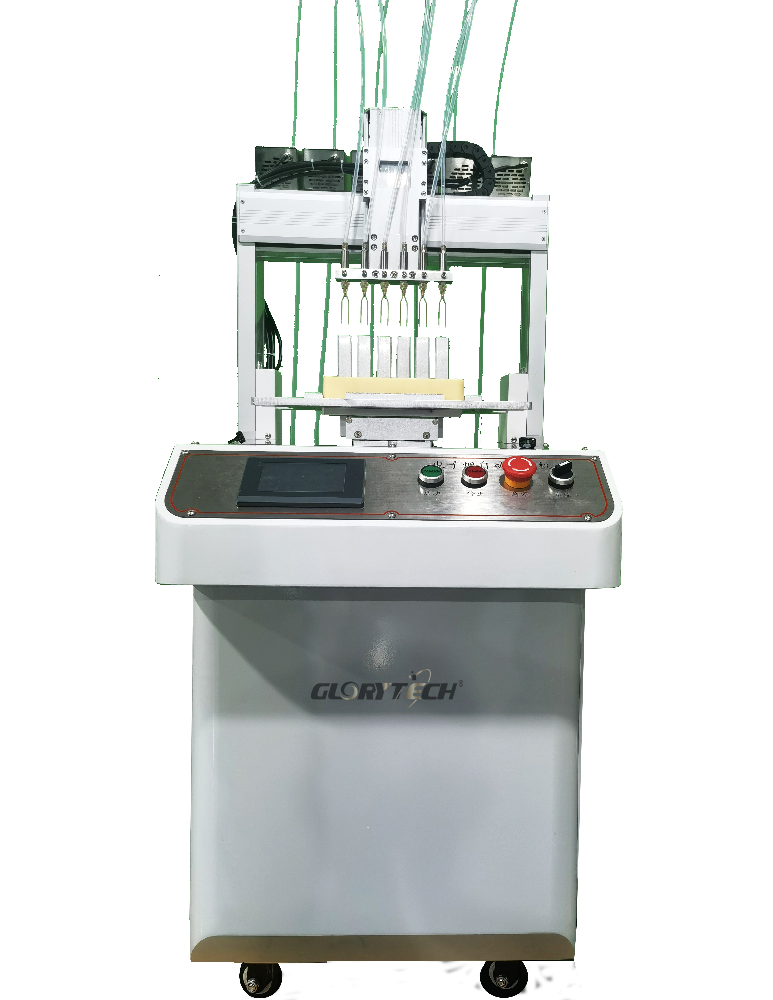

Glorytech electronic cigarette automatic oiling machine

Glorytech electronic cigarette automatic oiling machine

The production equipment parameters of the electronic cigarette automatic oiling machine of Golay Electronic Technology Co., Ltd. are as follows:

Station

5 oil injection head

Oil injection volume

0.1-2.5ml, 0-5ml (adjustable)

Oil injection accuracy

±0.02ml

Oil injection time

0.1s~3s (adjustable)

Oil injection range

X/Y/Zmm):300/300/100mm

Oil injection temperature

Normal temperature~95 (adjustable, this function is optional and does not have   temperature control settings by default.)

Maximum load

Y / Z6kg/3kg

Movement speed

X&Y / Z 0.1~400/200(mm/sec)

Decomposition ability

0.02mm/Axis

Repetitive accuracy

±0.02mm

Program recording mode

100 groups, each with 4000points (can support USB copy)

Transmission mode

Timing belt+precision linear guide

Input power supply

AC220V50Hz


Product Details

   Electronic cigarette is a new type of electronic product that heats liquid tobacco oil into a mist through electronic heating technology, providing it to smokers. Its principle is to use a battery to heat the cigarette oil, causing it to produce a mist like smoke, simulating the smoke effect generated during smoking. Compared to traditional cigarettes, e-cigarettes are more convenient to use, have a more comfortable taste, and do not produce second-hand smoke, making them widely popular among young people.

      In order to inject oil into e-cigarettes more accurately and quickly, Golly Electronic Technology Co., Ltd. has started developing automated high-precision production equipment to improve the production efficiency and quality of e-cigarettes. The oiling machine is one of the important equipment.

      The oiling machine is specially designed for oiling electronic cigarettes. It adopts a precision electronic control system control, which can independently control the accuracy of each head, single or continuous oil injection. The body of the pump head is made of 316 stainless steel material, and the oil injection pump core is made of ceramic material. All parts that come into contact with tobacco oil are made of food grade material, ensuring safety and hygiene. The characteristics of this equipment are stability, hygiene, environmental protection, high accuracy, fast efficiency, and easy operation.

      In the production process of electronic cigarettes, the oiling machine is a very important part. It can improve the loading speed of cigarette bombs, reduce production costs, and improve production efficiency. At the same time, the use of oil injectors can also reduce the occurrence of smoke bomb oil leakage and uneven atomization, improve product quality and user experience.

In short, the oiling machine is one of the indispensable equipment in the production process of electronic cigarettes. Its emergence can not only improve the production efficiency and quality of electronic cigarettes, but also reduce production costs and improve product competitiveness. With the continuous development of the electronic cigarette industry, the application of oiling machines will also become increasingly widespread, becoming one of the indispensable and important equipment in the production of electronic cigarettes.
